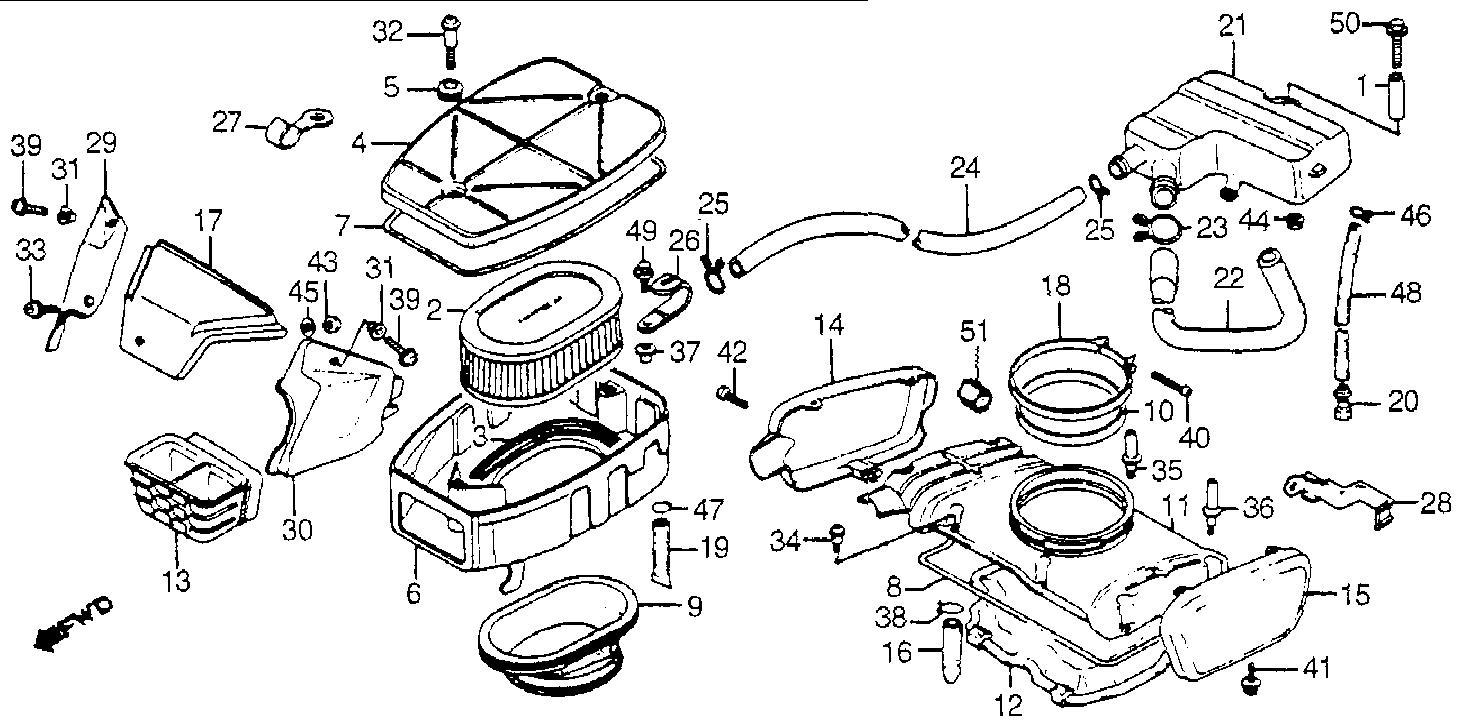

| Description |
Honda Part Number |
Unit Price |
|
1: COLLAR
|
17202-415-000
|
|
|
2: ELEMENT, AIR CLEANER
|
17210-MB1-000
|
|
|
3: GASKET, ELEMENT
|
17215-MB1-300
|
|
|
4: COVER, A/CLNR HSG
|
17220-MB1-000
|
|
|
4: COVER, A/CLNR HSG
|
17220-MB1-700
|
|
|
5: GROMMET
|
17221-MB1-000
|
|
|
6: HOUSING, AIR CLEANER
|
17230-MB1-000
|
|
|
6: HOUSING, AIR CLEANER
|
17230-MB1-700
|
|
|
7: SEAL
|
17212-GJ5-000
|
|
|
7: SEAL, A/CLNR HSG
|
17212-GR1-000
|
|
|
7: SEAL
|
17212-KJ9-000
|
|
|
7: SEAL
|
17219-HB3-000
|
|
|
7: SEAL
|
17222-MN4-405
|
|
|
7: SEAL, A/CLNR HSG
|
17231-MB1-000
|
|
|
7: SEAL, A/CLNR HSG
|
17231-MB2-000
|
|
|
8: *17222-MN4-405
|
17232-MB1-000
|
|
|
9: TUBE, CHAMBER JOINT
|
17245-MB1-000
|
|
|
9: TUBE, CHAMBER JOINT
|
17245-MB1-700
|
|
|
10: RING, JOINT TUBE
|
17247-MB1-000
|
|
|
11: COVER
|
17251-MB1-000
|
|
|
11: COVER
|
17251-MB1-700
|
|
|
11: COVER
|
17251-MB1-701
|
|
|
12: NET
|
17252-MB1-700
|
|
|
13: duct
|
17254-MB1-670
|
|
|
14: COVER, R
|
17255-MB1-000
|
|
|
15: COVER, L
|
17256-MB1-000
|
|
|
16: TUBE, AIR CLEANER
|
17259-MB1-000
|
|
|
17: COVER, IN. DUCT
|
17260-MB1-000
|
|
|
18: BAND B.
|
17349-MB1-000
|
|
|
18: BAND
|
17349-MK3-000
|
|
|
19: TUBE, DRAIN
|
17359-MA2-000
|
|
|
20: PLUG, BREATHER TUBE
|
17370-419-700
|
|
|
21: TANK, STORAGE
|
17551-MB1-000
|
|
|
22: TUBE, BREATHER
|
17553-MB1-000
|
|
|
23: CLIP, BREATHER TUBE
|
17554-MB0-000
|
|
|
24: TUBE, RETURN
|
17555-MB1-000
|
|
|
25: CLIP (16MM)
|
18534-634-670
|
|
|
26: CLIP, WIRE HARNESS
|
32170-443-850
|
|
|
26: CLAMP
|
91403-663-000
|
|
|
27: CLIP, CLUTCH CABLE
|
45469-399-000
|
|
|
28: GUIDE
|
50527-MB1-000
|
|
|
29: COVER, R. FR. SIDE
|
61402-MB1-000
|
|
|
30: COVER, L. FR. SIDE
|
61403-MB1-000
|
|
|
31: COLLAR, SIDE COVER
|
61406-MB1-000
|
|
|
32: BOLT
|
90102-MB1-000
|
|
|
33: BOLT (5x12)
|
90105-MB1-000
|
|
|
34: SCREW, PAN (4x15)
|
90141-MB0-000
|
|
|
35: SCREW A
|
90141-MB1-000
|
|
|
36: SCREW B
|
90142-MB1-000
|
|
|
37: COLLAR
|
90522-170-700
|
|
|
38: CLIP, TUBE
|
90652-MB1-000
|
|
|
39: SCREW, PAN (5x10)
|
93500-05010-0G
|
|
|
40: SCREW, PAN (5x16)
|
93500-05016-0G
|
|
|
40: SCREW, PAN (5x20)
|
93500-05020-0G
|
|
|
41: SCREW, WASHER (4x12)
|
93892-04012-00
|
|
|
42: SCREW, WASHER (4x16)
|
93892-04016-00
|
|
|
43: NUT, HEX (5MM)
|
94001-05080-0S
|
|
|
44: NUT, FLANGE (6MM)
|
94050-06000
|
|
|
45: WASHER, PLAIN (5MM)
|
94101-05800
|
|
|
46: CLIP, TUBE (B12.5)
|
95002-02130
|
|
|
47: CLIP, TUBE (C11)
|
95002-70000
|
|
|
48: BULK HOSE, VINYL
|
95003-23008-60M
|
|
|
49: BOLT, FLANGE (6x18)
|
95700-06018-00
|
|
|
50: BOLT, FLANGE (6x32)
|
95700-06032-08
|
|
|
50: BOLT, FLANGE (6x32)
|
95701-06032-08
|
|
|
51: GROMMET, WATER PIPE
|
17258-MB1-010
|
|
|
