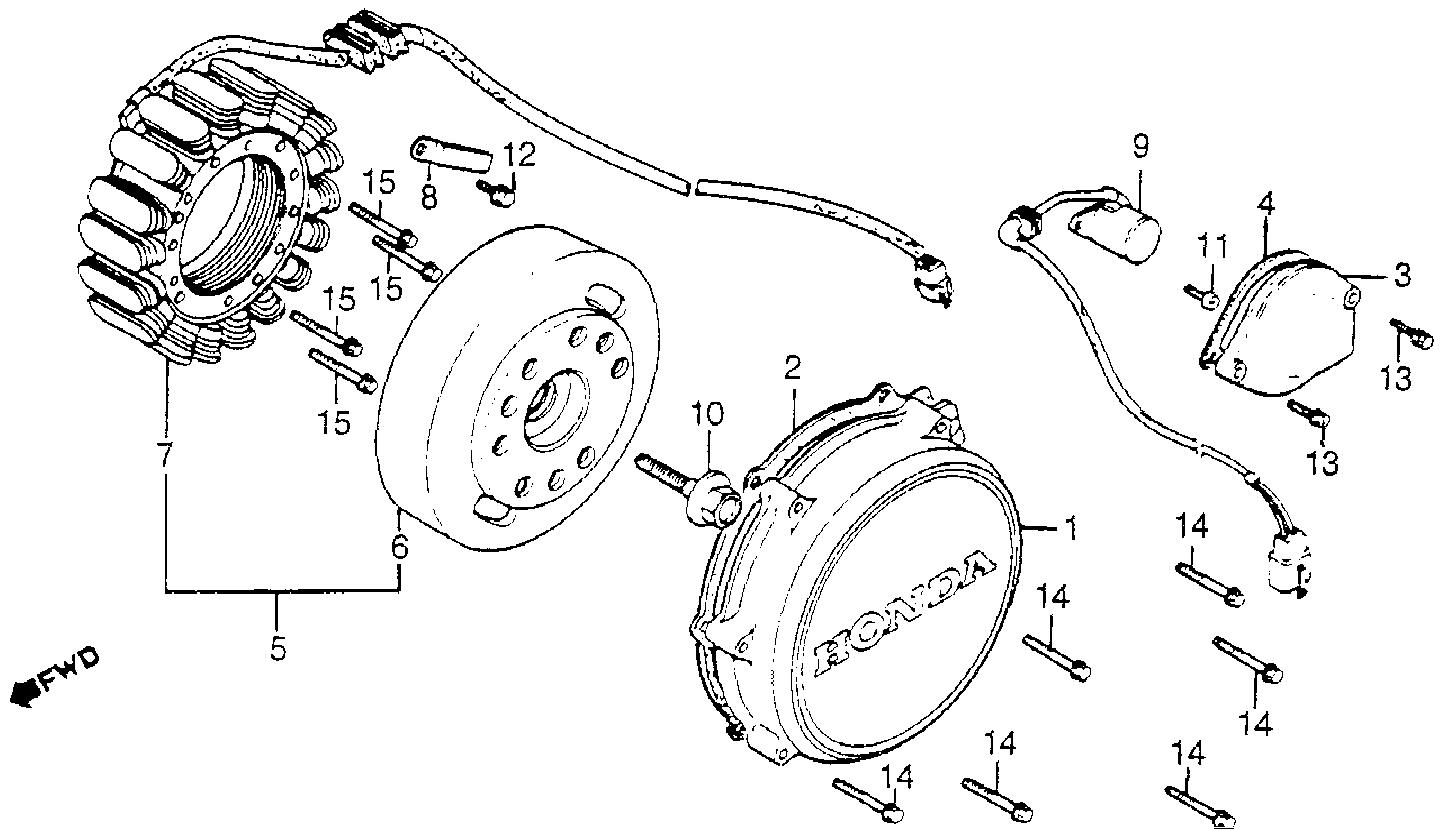

Description |
Honda Part Number |
Unit Price |
|
1: COVER, ALTERNATOR |
11631-MB0-000 |
|
|
1: COVER, ALTERNATOR |
11631-MB0-505 |
|
|
2: GASKET |
11636-MB0-306 |
|
|
3: COVER |
11641-MB0-000 |
|
|
3: COVER, INDICATOR SWITCH |
11641-MB0-770 |
|
|
4: GASKET |
11642-MB0-306 |
|
|
5: ALTERNATOR ASSY. |
31100-MB1-004 |
|
|
5: ALTERNATOR ASSY. |
31100-MB1-014 |
|
|
6: ROTOR |
31110-MB1-004 |
|
|
6: ROTOR |
31110-MB1-870 |
|
|
7: STATOR |
31120-MB1-004 |
|
|
7: STATOR |
31120-MB1-014 |
|
|
7: STATOR |
31120-MB1-024 |
|
|
8: CLAMP |
31130-MB0-000 |
|
|
9: SWITCH ASSY., CHANGE |
35759-MB1-000 |
|
|
10: BOLT, FLANGE (12x45) |
90023-HA7-670 |
|
|
10: BOLT, FLANGE (12x40) |
90023-428-000 |
|
|
10: BOLT, FLANGE (12x45) |
90024-MT3-000 |
|
|
11: SCREW, PAN (6x12) |
93500-06012-0A |
|
|
12: BOLT, FLANGE (6x12) |
96000-06012-00 |
|
|
12: BOLT, FLANGE (6x12) |
96001-06012-00 |
|
|
13: BOLT, FLANGE (6x20) |
96000-06020-00 |
|
|
13: BOLT, FLANGE (6x20) |
96001-06020-00 |
|
|
13: BOLT, FLANGE (6x20) |
96000-06020-07 |
|
|
13: BOLT, FLANGE (6x20) |
96001-06020-07 |
|
|
14: BOLT, FLANGE (6x35) |
96000-06035-00 |
|
|
14: BOLT, FLANGE (6x35) |
96001-06035-00 |
|
|
15: BOLT, FLANGE (6x40) |
96000-06040-00 |
|
|
15: BOLT, FLANGE (6x40) |
96001-06040-00 |
|
|
