| Description |
Honda Part Number |
Unit Price |
|

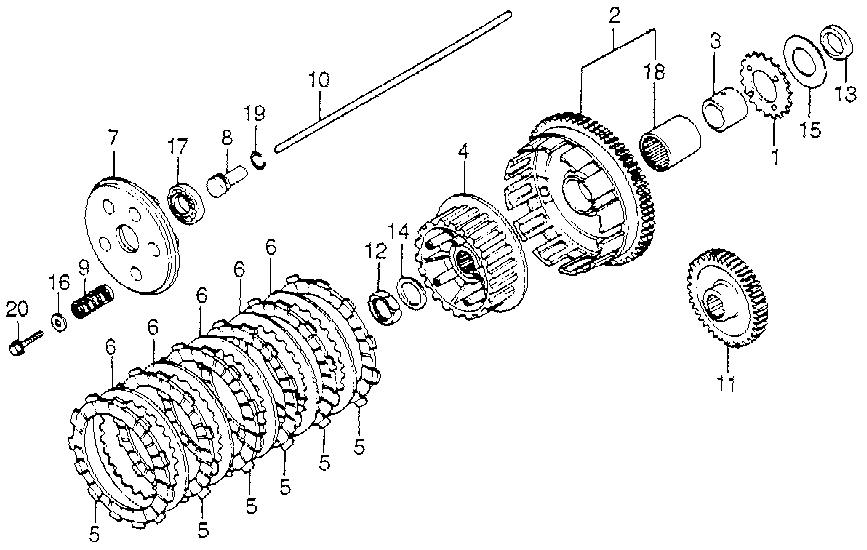

1: SPROCKET (26T)
|
15131-MB0-000
|
|
|
2: CLUTCH OUTER (66T)
|
22100-MB0-003
|
|
|
2: CLUTCH OUTER (66T)
|
22100-MB0-770
|
|
|
2: CLUTCH OUTER (66T)
|
22100-MB0-771
|
|
|
2: CLUTCH OUTER (66T)
|
22100-MB0-772
|
|
|
2: CLUTCH OUTER (66T)
|
22100-MK3-730
|
|
|
2: CLUTCH OUTER
|
22100-MN2-000
|
|
|
3: GUIDE, CLUTCH
|
22116-MB0-000
|
|
|
4: CENTER, CLUTCH
|
22120-MB0-003
|
|
|
4: CENTER, CLUTCH
|
22120-MN0-000
|
|
|
4: CENTER, CLUTCH
|
22120-MB1-770
|
|
|
5: DISK, CLUTCH FRICTION
|
22201-MB0-003
|
|
|
5: DISK, CLUTCH FRICTION
|
22201-MM5-000
|
|
|
6: PLATE, CLUTCH
|
22321-MG8-000
|
|
|
6: PLATE B, CLUTCH
|
22321-283-000
|
|
|
7: PLATE, CLUTCH PRESSURE
|
22350-MB0-003
|
|
|
7: PLATE, CLUTCH PRESSURE
|
22350-MG7-000
|
|
|
7: PLATE, CLUTCH PRESSURE
|
22350-MK3-770
|
|
|
8: PIECE, CLUTCH JOINT
|
22366-MB0-000
|
|
|
9: SPRING, CLUTCH
|
22401-MB0-000
|
|
|
10: ROD, CLUTCH LIFTER
|
22850-MB0-000
|
|
|
11: GEAR (38T)
|
23103-MB0-000
|
|
|
11: GEAR (38T)
|
23103-MB0-770
|
|
|
11: GEAR (38T)
|
23103-MB0-771
|
|
|
12: NUT, LOCK (22MM)
|
90051-422-000
|
|
|
12: NUT, LOCK (22MM)
|
90201-MB0-770
|
|
|
13: COLLAR (25.2x7)
|
90203-MB0-000
|
|
|
14: WASHER (22MM)
|
90432-MB0-000
|
|
|
14: WASHER (22MM)
|
90432-MB0-010
|
|
|
15: WASHER (25MM)
|
90459-MB0-000
|
|
|
16: WASHER (6x19)
|
90481-259-000
|
|
|
17: BEARING (16003)
|
91008-KK6-000
|
|
|
17: BEARING (16003)
|
91008-362-000
|
|
|
17: BEARING (16003)
|
91010-HC0-003
|
|
|
17: BEARING (16003)
|
91010-KK6-013
|
|
|
18: BEARING (35x42x30)
|
91024-MB0-003
|
|
|
18: BEARING (35x42x30)
|
91024-MB0-004
|
|
|
19: CLIP (15MM)
|
94601-15000
|
|
|
20: BOLT, FLANGE (6x20)
|
95701-06020-08
|
|
|
20: BOLT, FLANGE (6x20)
|
95718-06020-08
|
|
|
