| Description |
Honda Part Number |
Unit Price |
|

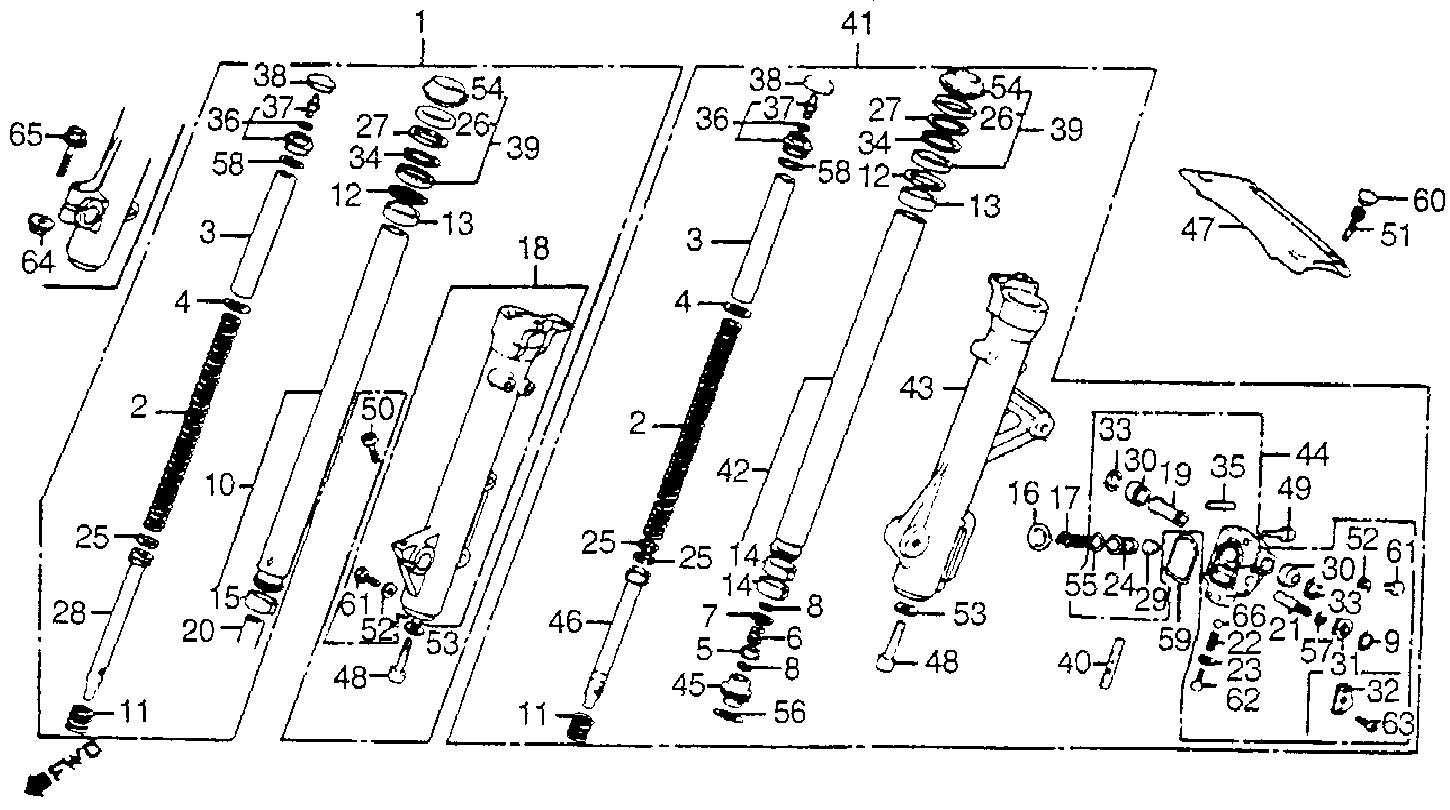

1: FORK ASSY., R. FR.
|
51400-MB1-672
|
$454.04 |
|
1: FORK ASSY., R. FR.
|
51400-MB1-772
|
$454.04 |
|
2: SPRING, FR. FORK
|
51401-MB0-003
|
$47.92 |
|
2: SPRING, FR. FORK
|
51401-MB1-771
|
$52.46 |
|
3: COLLAR, SPRING
|
51402-MB1-003
|
$10.28 |
|
4: SEAT, SPRING
|
51403-MA0-771
|
$2.30 |
|
5: VALVE, OIL LOCK
|
51403-MA6-003
|
$3.71 |
|
6: SPRING
|
51404-MA6-003
|
$1.56 |
|
7: SEAT, SPRING
|
51405-MA6-003
|
$2.68 |
|
8: RING, STOPPER
|
51405-MC7-003
|
$1.13 |
|
9: RING, STOPPER
|
51406-MB1-771
|
$0.99 |
|
10: PIPE, R. FR. FORK
|
51410-MB1-003
|
$172.08 |
|
11: SPRING, FR.
|
51412-ME1-671
|
$2.82 |
|
12: RING, BACKUP
|
51412-461-003
|
$3.64 |
|
12: RING, BACKUP
|
51412-461-305
|
$3.64 |
|
13: BUSH, GUIDE
|
51414-MN4-003
|
$6.25 |
|
13: BUSH, GUIDE
|
51414-461-003
|
$6.25 |
|
14: BUSH, SLIDER
|
51415-MC5-003
|
$7.95 |
|
14: BUSH, SLIDER
|
51415-MC5-013
|
$7.95 |
|
15: BUSH, SLIDER
|
51415-461-003
|
$9.08 |
|
16: GASKET, PISTON CASE
|
51417-ME1-671
|
$3.71 |
|
16: GASKET
|
51417-MJ0-013
|
$3.71 |
|
17: SPRING, PISTON
|
51418-ME1-671
|
$2.61 |
|
18: CASE, R. (LOWER)
|
51421-MB1-003
|
$161.08 |
|
18: CASE, R. (LOWER)
|
51421-MB1-771
|
$154.98 |
|
19: COLLAR, PISTON
|
51423-MC7-003
|
$6.06 |
|
19: COLLAR, PISTON
|
51423-MB1-771
|
$6.06 |
|
20: PIECE, OIL LOCK
|
51432-371-003
|
$12.20 |
|
21: ROD, ADJUSTER
|
51433-MB0-003
|
$8.64 |
|
21: ROD, ADJUSTER
|
51433-MB1-771
|
$8.43 |
|
22: SPRING, CLICK
|
51434-MC7-003
|
$1.56 |
|
23: WASHER (5MM)
|
51435-MC7-003
|
$1.26 |
|
24: PISTON
|
51436-ME1-671
|
$12.83 |
|
24: PISTON
|
51436-MB1-771
|
$14.05 |
|
25: RING, PISTON
|
51437-MA0-771
|
$4.49 |
|
26: HOLDER, GREASE
|
51438-MC5-003
|
|
|
27: WASHER, HOLDER
|
51439-MC5-003
|
|
|
28: PIPE, SEAT
|
51440-MB0-003
|
$34.70 |
|
29: RUBBER, STOPPER
|
51441-MC7-003
|
$1.63 |
|
30: BOOT, PISTON CASE
|
51442-MC7-003
|
$4.82 |
|
31: WASHER, L. SIDE
|
51444-MB1-771
|
$2.57 |
|
32: WASHER, L. SIDE
|
51444-MC7-013
|
$7.96 |
|
33: HOLDER, BOOT
|
51445-MC7-003
|
$3.02 |
|
34: CIRCLIP (50MM)
|
51447-461-003
|
$2.13 |
|
35: PIN, PARALLEL
|
51448-MB1-771
|
$0.95 |
|
36: BOLT ASSY., FR. FORK
|
51450-MB0-003
|
$35.98 |
|
36: BOLT ASSY., FR. FORK
|
51450-MB0-013
|
$35.98 |
|
37: VALVE, AIR
|
51456-469-013
|
$15.22 |
|
38: CAP, AIR VALVE
|
51457-MB1-003
|
$9.16 |
|
39: SEAL SET, FR. FORK
|
51490-KAZ-003
|
$15.70 |
|
39: SEAL SET, FR. FORK
|
51490-MC5-305
|
$15.70 |
|
39: SEAL SET, FR. FORK
|
51490-MC5-315
|
$15.70 |
|
40: MARK, FR. FORK
|
51496-MC7-670
|
$2.33 |
|
41: FORK ASSY., L. FR.
|
51500-MB1-671
|
$506.40 |
|
41: FORK ASSY., L. FR.
|
51500-MB1-672
|
$506.40 |
|
41: FORK ASSY., L. FR.
|
51500-MB1-771
|
$506.40 |
|
41: FORK ASSY., L. FR.
|
51500-MB1-772
|
$506.40 |
|
42: PIPE, L. FR. FORK
|
51510-MB1-003
|
$161.34 |
|
43: CASE, L. (LOWER)
|
51521-MB1-003
|
$182.15 |
|
43: CASE, L. (LOWER)
|
51521-MB1-771
|
$170.06 |
|
44: CASE, L. PISTON
|
51530-MB0-003
|
$77.55 |
|
44: CASE, L. PISTON
|
51530-MB1-771
|
$77.55 |
|
45: PIECE B, OIL LOCK
|
51532-ME1-671
|
$11.27 |
|
45: PIECE B, OIL LOCK
|
51532-MB1-771
|
$19.63 |
|
46: PIPE B, SEAT
|
51540-MB0-003
|
$33.52 |
|
47: STABILIZER, FR. FORK
|
53240-MB1-000
|
$31.93 |
|
47: STABILIZER, FR. FORK
|
53240-MB1-010
|
$31.93 |
|
47: STABILIZER, FR. FORK
|
53240-MB1-020
|
$31.93 |
|
47: STABILIZER, FR. FORK
|
53240-MB1-030
|
$31.93 |
|
47: STABILIZER, FR. FORK
|
53240-MB1-040
|
$31.93 |
|
47: STABILIZER, FR. FORK
|
53240-MB1-050
|
$31.93 |
|
48: BOLT, SOCKET (8MM)
|
90116-ME1-671
|
$2.91 |
|
49: BOLT, SOCKET
|
90118-MC7-003
|
$1.67 |
|
49: BOLT, SOCKET (6x18)
|
96700-06018-17
|
$1.67 |
|
50: BOLT, SOCKET (8x28)
|
90152-MB1-700
|
$2.51 |
|
50: BOLT, SOCKET (8x28)
|
90152-ME5-000
|
$2.51 |
|
51: BOLT, SOCKET (8x17)
|
90153-MB0-000
|
$2.43 |
|
51: BOLT, SOCKET (8x17)
|
90153-MB0-405
|
$2.43 |
|
52: GASKET, FR.
|
90543-273-000
|
$1.05 |
|
53: WASHER (8MM)
|
90544-283-000
|
$1.35 |
|
54: DUST SEAL
|
91254-KAZ-003
|
$8.45 |
|
54: DUST SEAL, FR. FORK
|
91254-461-003
|
$8.45 |
|
54: DUST SEAL, FR. FORK
|
91254-461-004
|
$8.45 |
|
55: O-RING D (13.8x2.4)
|
91305-MC7-003
|
$0.92 |
|
55: O-RING D (13.8x2.4)
|
91308-MC7-003
|
$0.92 |
|
55: O-RING (13.8x2.4)
|
91311-PH7-003
|
$0.92 |
|
56: O-RING E (33.5x2)
|
91306-MC7-003
|
$1.37 |
|
57: O-RING (6.8x1.9)
|
91306-PJ4-000
|
$0.99 |
|
57: O-RING B (6.8x1.9)
|
91310-MC7-003
|
$0.99 |
|
58: O-RING (29x2.4)
|
91344-PC9-004
|
$1.64 |
|
58: O-RING (29x2.4)
|
91356-371-000
|
$1.64 |
|
59: O-RING (49.4x3.1)
|
91308-MJ0-003
|
$2.18 |
|
59: O-RING (49.4x3.1)
|
91399-MB0-003
|
$2.18 |
|
60: CAP (8MM)
|
91455-MB0-000
|
$1.92 |
|
60: CAP (8MM)
|
91455-MB0-010
|
$1.92 |
|
61: BOLT, HEX (6x8)
|
92000-06008-0A
|
$0.46 |
|
61: BOLT, HEX (6x8)
|
92101-06008-0A
|
$0.46 |
|
62: SCREW, PAN (5x10)
|
93500-05010-0A
|
$0.33 |
|
62: SCREW, PAN (5x10)
|
93500-05010-1A
|
$0.33 |
|
62: SCREW, PAN (5x10)
|
93510-05010-0A
|
$0.33 |
|
63: SCREW, FLAT (4x10)
|
93600-04010-1B
|
$0.46 |
|
64: NUT, FLANGE (8MM)
|
94050-08000
|
$0.51 |
|
65: BOLT, FLANGE (8x50)
|
95700-08050-00
|
$0.81 |
|
65: BOLT, FLANGE (8x50)
|
95701-08050-00
|
$0.81 |
|
66: BALL #5 (5/32)
|
96211-05000
|
$0.46 |
|
