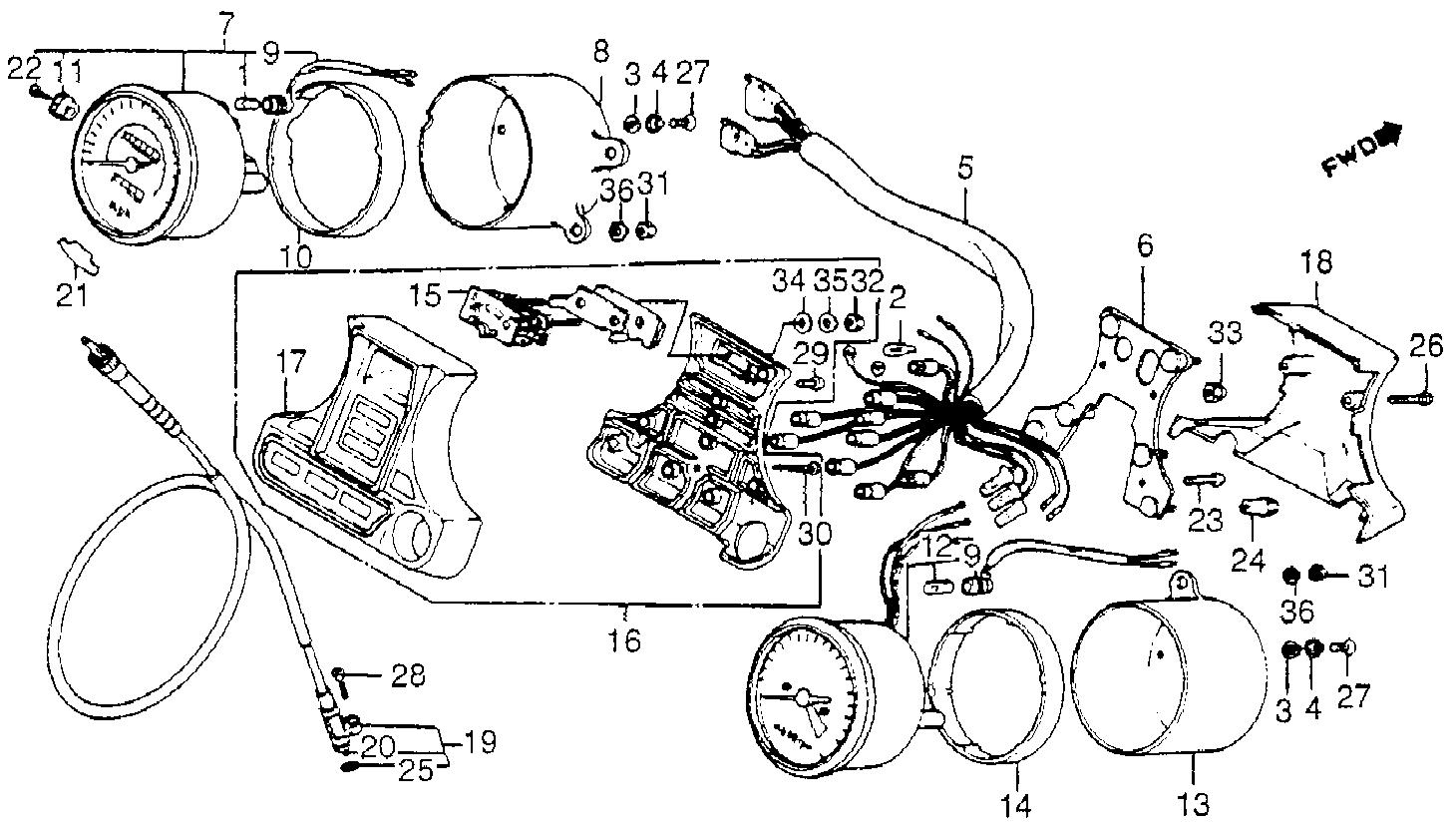

| Description |
Honda Part Number |
Unit Price |
|
1: BULB (12V 3.4W)
|
34908-GA7-701
|
$1.96 |
|
1: BULB (12V3.4W)(158)
|
37102-567-009
|
$1.96 |
|
1: BULB (12V3.4W2CP)
|
37237-SA5-003
|
$1.96 |
|
1: BULB (12V3.4W)(158)
|
37237-SA5-004
|
$1.96 |
|
2: BULB (12V/3W)
|
34908-MB0-003
|
$1.42 |
|
3: RUBBER
|
37101-MB1-008
|
$1.28 |
|
4: WASHER
|
37102-MB1-008
|
$1.26 |
|
5: SOCKET
|
37105-MB1-671
|
$97.49 |
|
6: BRACKET, INSTRUMENT
|
37120-MB1-008
|
$45.09 |
|
7: SPEEDOMETER ASSY.
|
37200-MB1-672
|
$186.32 |
|
7: SPEEDOMETER ASSY.
|
37200-MB1-771
|
$170.20 |
|
8: COVER, SPEEDOMETER
|
37202-MB1-008
|
$57.84 |
|
9: SOCKET
|
37203-MB1-000
|
$7.81 |
|
10: RUBBER, SPEEDOMETER
|
37204-MB1-008
|
$7.76 |
|
11: KNOB, TRIP METER
|
37220-MB4-671
|
$6.58 |
|
12: TACHOMETER ASSY.
|
37250-MB1-008
|
$253.23 |
|
12: TACHOMETER ASSY.
|
37250-MB1-018
|
$253.23 |
|
12: TACHOMETER ASSY.
|
37250-MB1-028
|
$253.23 |
|
13: COVER, TACHOMETER
|
37252-MB1-008
|
$57.84 |
|
14: RUBBER, TACHOMETER
|
37254-MB1-008
|
$7.76 |
|
15: INSTRUMENT ASSY.
|
37450-MB1-008
|
$36.27 |
|
15: INSTRUMENT ASSY.
|
37450-MB1-018
|
$36.27 |
|
16: BOX ASSY., PILOT
|
37600-MB1-008
|
$93.03 |
|
16: BOX ASSY., PILOT
|
37600-MB1-872
|
$93.03 |
|
17: CASE, PILOT (UPPER)
|
37610-MB1-008
|
$49.40 |
|
17: CASE, PILOT (UPPER)
|
37610-MB1-871
|
$49.40 |
|
18: COVER, INSTRUMENT
|
37618-MB1-008
|
$23.62 |
|
19: CABLE, SPEEDOMETER
|
44830-MB1-000
|
$16.65 |
|
20: CABLE (INNER)
|
44831-KM1-000
|
$3.35 |
|
20: CABLE (INNER)
|
44831-MB1-300
|
$3.35 |
|
20: CABLE (INNER)
|
44831-ME1-670
|
$3.35 |
|
21: LABEL
|
87523-410-790
|
$1.35 |
|
22: SCREW, PAN (2x6)
|
90102-434-671
|
$1.13 |
|
23: SCREW, PAN (4x24)
|
90143-MB1-000
|
$1.05 |
|
24: NUT
|
90303-MB1-000
|
$2.91 |
|
25: O-RING (6.8x1.9)
|
91301-027-000
|
$0.99 |
|
25: O-RING (6.8x1.9)
|
91306-PJ4-000
|
$0.99 |
|
25: O-RING B (6.8x1.9)
|
91310-MC7-003
|
$0.99 |
|
26: SCREW, PAN (4x20)
|
93500-04020-0G
|
$0.32 |
|
27: SCREW, OVAL (4x8)
|
93700-04008-0B
|
$0.40 |
|
28: SCREW, OVAL (5x20)
|
93700-05020-0G
|
$0.25 |
|
29: SCREW, TAPPING (3x8)
|
93901-32180
|
$0.33 |
|
30: SCREW, TAP (4x16)
|
93901-34480
|
$0.33 |
|
31: NUT, HEX (6MM)
|
90310-KA3-711
|
$0.18 |
|
31: NUT, HEX (6MM)
|
94000-06000-0S
|
$0.18 |
|
31: NUT, HEX (6MM)
|
94001-06000
|
$0.18 |
|
31: NUT, HEX (6MM)
|
94001-06000-0S
|
$0.18 |
|
31: NUT, HEX (6MM)
|
94001-06008-0S
|
$0.18 |
|
31: NUT, HEX (6MM)
|
94001-06200-0S
|
$0.18 |
|
31: NUT, HEX (6MM)
|
94030-06000
|
$0.18 |
|
32: NUT, HEX (4MM)
|
94002-04000-0S
|
$0.34 |
|
33: NUT, CAP (8MM)
|
94021-08020-0S
|
$0.69 |
|
34: WASHER, PLAIN (4MM)
|
94101-04000
|
$0.32 |
|
35: WASHER, SPRING (4MM)
|
94111-04000
|
$0.34 |
|
36: WASHER, SPRING (6MM)
|
94111-06000
|
$0.32 |
|
